Pixel Art Templates

This page will be where I share free pixel art templates that I create for my own use, in the hopes that it can help out some other devs, too.

---

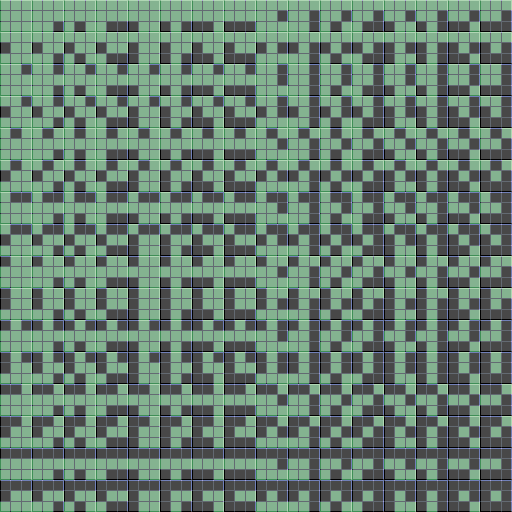

terrain template

This is a full 256-tile terrain connection template. This template satisfies all possible connections between two terrain types, useful for top-down procedurally generated tilemaps.

• green = terrain A, grey = terrain B
• each tile is 32x32 (scales up easily if needed)
• highlighted/shaded borders for raised tile effects

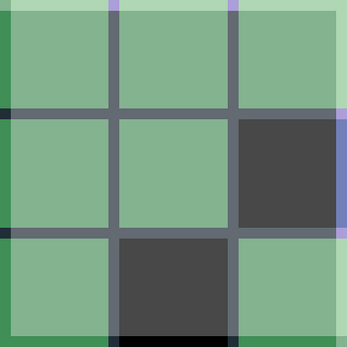

• inner 3x3 grid for alignment and spacing
• all possible connections for a single terrain to connect to another
  • a duplicate set for a second terrain fully satisfies all requirements for Godot's  "match corners and sides" terrain configuration.
• follows a binary pattern for ease in locating a particular tile
  • ex:, first tile is 000 000 000, 2nd is 000 000 001, 3rd is 000 000 010, and so on
• 3x3 grid layout matches Godot 4's terrain painting grid, with the middle terrain bit representing the terrain's identity

copy/paste into your pixel art program of choice or download:
